MKS Path FINDER II Ntelligent Auto Matching Network PF2-DUAL-6D71P-2 USED

• Brand:MKS
• MKS MODEL NO.:  PF2-DUAL-6D71P-2

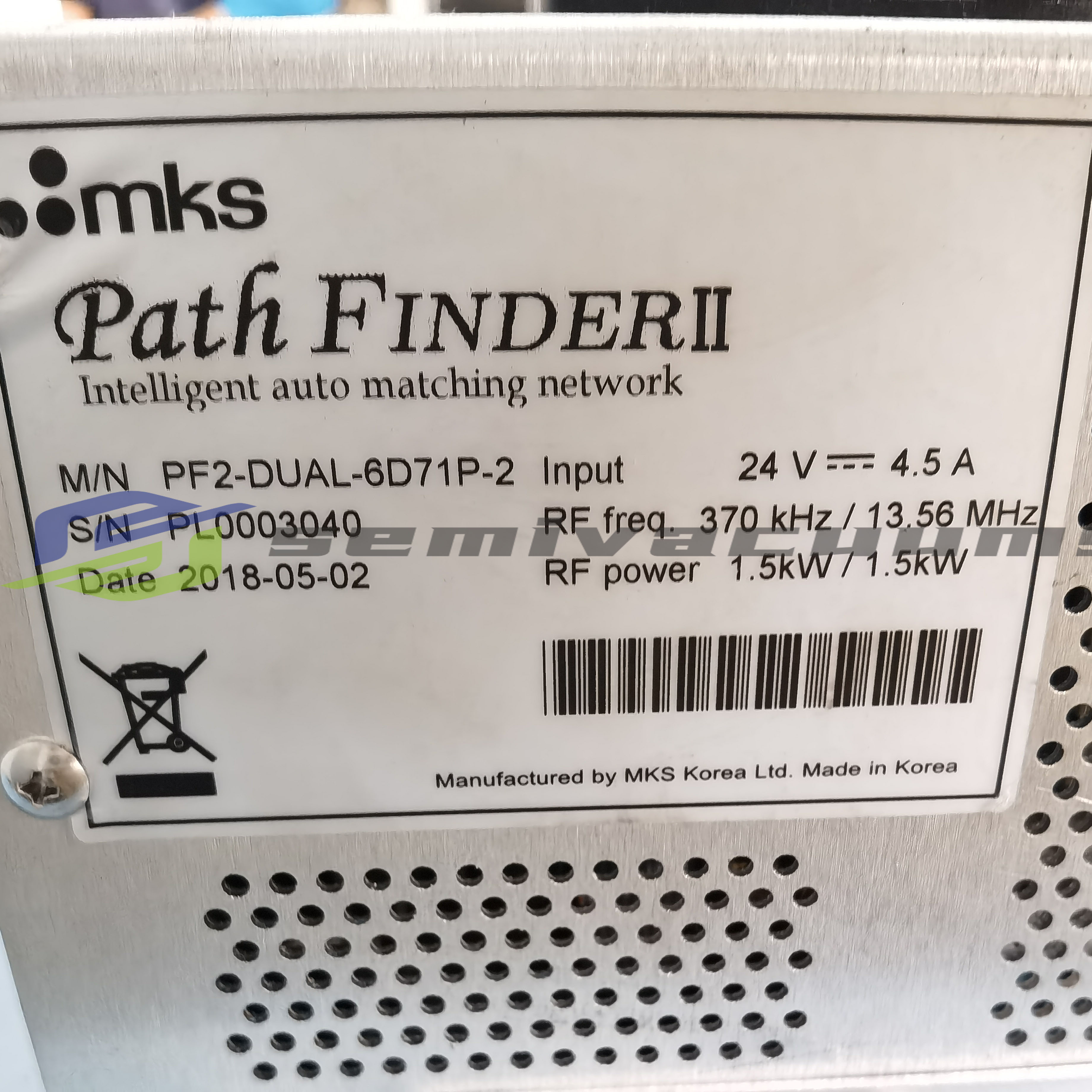

• RF POWER:1.5KW/1.5KW
• RF FREQUENCY:370khz.13.56mhz

The MKS Path FINDER II Intelligent Auto Matching Network PF2‑DUAL‑6D71P‑2 is a dual‑channel, auto‑tuning RF matching system designed for high‑precision semiconductor equipment. Leveraging MKS Instruments’ market‑leading RF technology, it delivers fast, accurate impedance matching, minimizing reflected power and maximizing process stability.

Key Features

Technical Specifications

• Model: PF2‑DUAL‑6D71P‑2
• RF Input Frequency: 100 MHz
• Maximum Output Power: 5 kW
• DC Power Input: 24 V DC, 2 A
• Control Interface: A/D I/O, USER connector
• Cooling Method: Forced‑air (fan)
• Dimensions / Weight: (standard match box form factor)

Benefits for Semiconductor Manufacturing

1. Reduced Process Variability – Fast auto‑matching eliminates drift, ensuring consistent plasma density.
2. Higher Throughput – Minimal downtime for manual tuning translates to increased wafer output.
3. Energy Efficiency – Precise impedance control lowers reflected power, saving electricity.
4. Scalability – Dual‑channel design supports multi‑reactor lines without additional hardware.
5. Ease of Integration – Standard 24 V supply and common I/O simplify retrofits.

Typical Applications

• Plasma Etching & Deposition – Precise RF power delivery for SiO₂, Si₃N₄, and metal etch processes.
• Thin‑Film Solar Cell Production – Uniform plasma generation for large‑area coating.
• Advanced Packaging – RF‑driven plasma cleaning in 3D‑IC and TSV fabrication.
• Research & Development Labs – Flexible dual‑channel setup for experimental plasma studies.

Why Choose MKS Path FINDER II PF2‑DUAL‑6D71P‑2
Industry Leadership – MKS Instruments is recognized as the market leader in RF power supplies and matching networks, guaranteeing long‑term support and parts availability.

• Proven Field Performance – Used units are actively sold on specialist marketplaces, reflecting strong demand and reliability.
• Comprehensive Support – MKS provides detailed manuals, software drivers, and technical assistance for seamless deployment.

Installation & Integration Tips

1. Power Wiring – Connect the 24 V DC supply with a minimum 2 A rating; use shielded cables for RF input.
2. Cooling Setup – Ensure unobstructed airflow; install the unit in a ventilated rack.
3. Control Configuration – Map A/D I/O signals to your PLC or PC; use the provided API for auto‑tuning parameters.
4. Calibration – Perform an initial sweep with a dummy load to verify matching range before processing wafers.
